Customer-specific system solutions for mobile machines

Electrical system and CAN solutions for mobile machines

E-T-A system solutions consists of a team of experts at your disposal, to design electrical system and CAN solutions for a wide range of vehicles, according to your needs, ideas and technical requirements. Our motivation in every project we pursue is to work with our customers to find reliable solutions that are easy to install and maintain.

Our solutions for you

  • Coordinated combinations of innovative E-T-A components

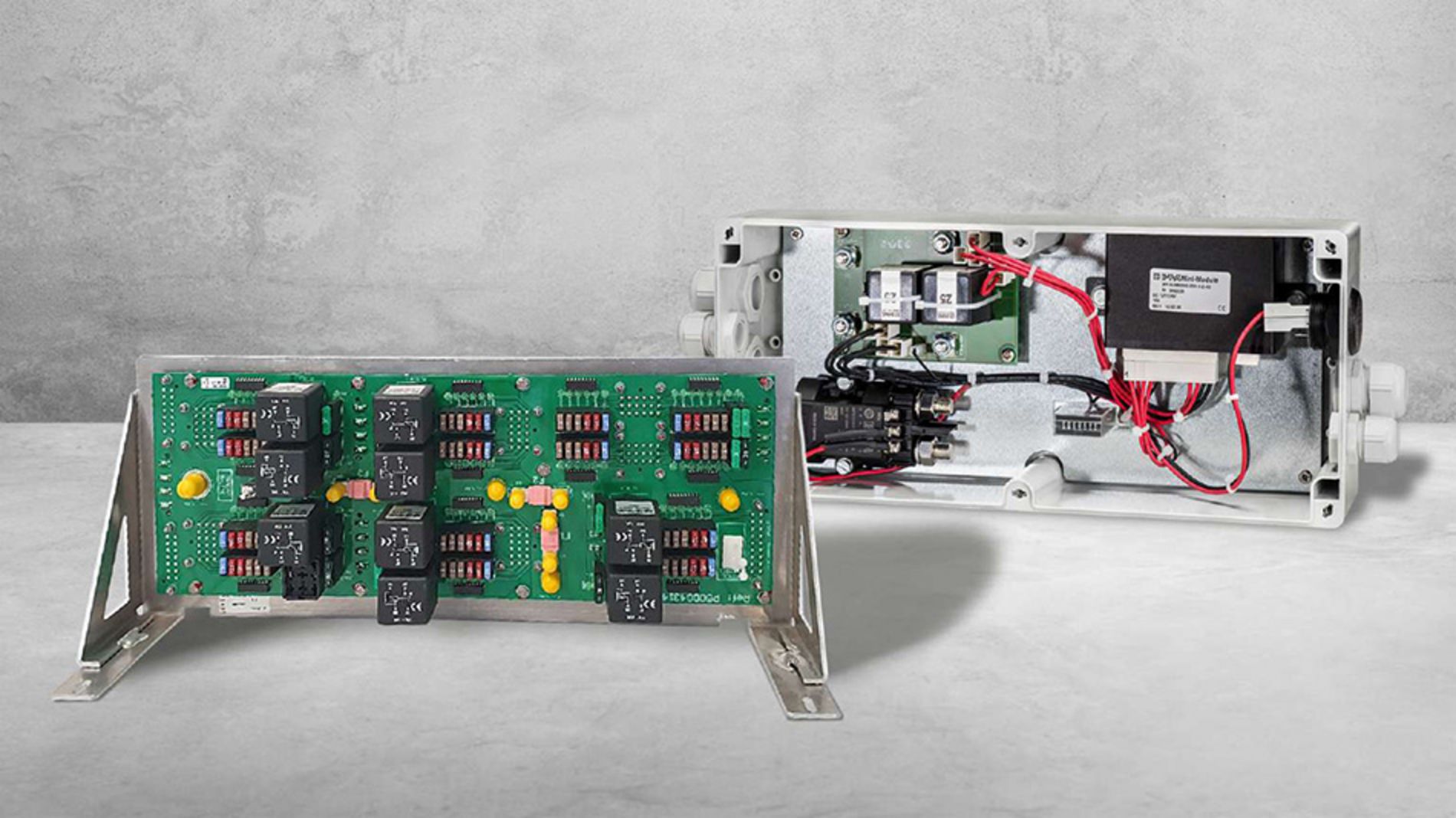

  • Individual PCB solutions, from simple power distributors up to the Energy & Data distribution module
  • Easy-to-integrate and compact enclosure solutions up to IP6K9K
  • High-voltage solutions
  • Integration of complete CAN systems, from the power distributor to the HMI
  • Economic solutions already at small quantities

Your benefits

  • System optimisation adapted to the application: Solutions are developed together with our customers adapted to the application
  • Plug-and-Play: A variety of plug-in connector options simplifies integration into the vehicle
  • Easy maintenance and aftersales: Flexible interchangeability through use of plug-in type components
  • Cost savings and risk minimisation: Extremely short mounting time and risk minimisation by way of pre-wired plug-in connectors

Project example: CAN bus battery master switches

  • System as a main switch function (disconnection of battery and on-board electrical system)
  • Activation/control via CAN bus.
  • Rated voltage: 12 V DC or 24 V DC
  • Low voltage detection
  • Switch-on without time delay
  • Optional switch off with adjustable off delay

Solution

  • MPR10 bistable power relay as a battery master switch
  • SCS10 configurable multi-functional relay as control unit.
  • The power relay immediately disconnects upon detected low voltage. (No automatic re-start to increase safety).
  • Switching condition of the power relay can be reported back via CAN bus.
  • Activation can optionally be via CAN bus or via hardware switch.

More product info

MPR10

Relais électromécanique de puissance type MPR

Typ SCS10 von E-T-A: Das smarte Relais SCS10 gehört zu den kleinsten Komponenten der SCS Produktfamilie.

SCS10

Relais CAN dans un boîtier standard selon ISO 7588 MINI 3 entrées, 2 sorties HSD à 5A

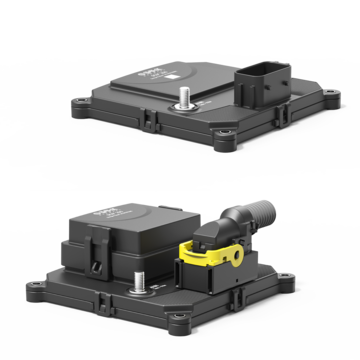

SCS200

Système de distribution de courant Intelligent avec connexion ver le Bus de Champ du type CAN et avec larges fonctions de diagnostic
