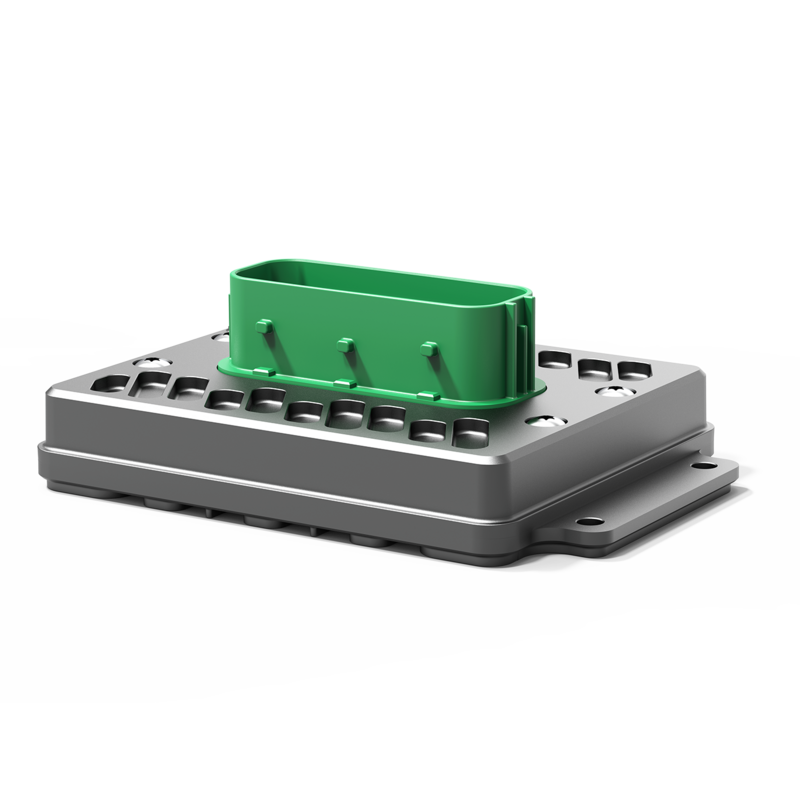

Type SCS1000

142 mm


The perfect entry-level solution SCS1000 - performance and logic combined in one module

System size and high load currents play an important role in increasingly ingenious vehicle architecture, where space in the vehicle is limited.

The SCS3000 and SCS1000 modules are extremely compact power distribution systems with integrated logic. The modules offer a wealth of functions together with high performance in a very small package. The SCS3000/1000 are ideal in terms of upgradeability for fleet modernisation, retrofits and projects where space saving is paramount.

Compared to the SCS3000 the SCS1000 comes with only a CAN channel and therefore is the ideal entry-level solution for smaller or decentralised system architectures and for the first steps towards vehicle digitisation.

SCS1000 modules can easily be configured via a graphical programming environment.


  • Space-saving and robust through efficient semi-conductor technology
  • Flexible mounting and optimised wiring through compact IP67 housing
  • Adapted to your requirements through configuration via graphic programming environment


  • Entry-level solution for smaller system architectures
  • Agricultural and forestry equipment
  • Construction machinery and special vehicles
  • Buses and trucks

Donnés techniques

Communication CAN 2.0B
SAE J1939
Courant nominal par canal 15 A
Nombre de canaux 16
Tension nominale de la charge DC 12 V/DC 24 V
Courant nominal de la charge

160 A

Température ambiante -40°C … +85°C
Raccordements Tyco AMP Leavy Seal 39-Pin
Homologations KBA E11 (ECE-R10)


  • Bus
  • Camions
  • Engins de chantier
  • Machines agricoles et forestière
  • Véhicules spéciaux
