Type ESS30-S
Description

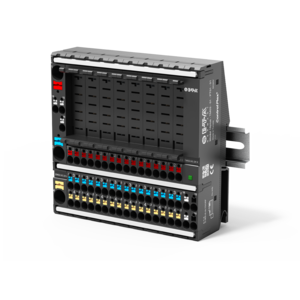

The electronic circuit protector ESS30-S with physical isolation is the globally unique electronic overcurrent protection for DC 24 V applications as a “low energy breaker”. For the use in decentralised and centralised power supply units, it meets the requirements to DIN EN 60934, to UL1077 as a Supplementary Protector and to UL 1310 as “Class2 power unit” (NEC class2). The compact device can be plugged into the terminal blocks 17plus and 18plus and into the SVS power distribution systems and ensures quick and easy installation.
New! Now also adjustable versions available!
Donnés techniques
Tension nominale |
DC 24 V (18...30 V) |
---|---|
Tension nominale |
|
Courant nominal |
0.5 A 1 A 1 A/2 A adjustable 2 A 3 A 3 A/6 A adjustable 3,6 A 4 A 6 A 8 A 10 A |
Nombre de pôles | unipolaire |
Temporisation de commutation |
avec séparation galvanique Temporisation de commutation: en cas de court-circuit: typique 100 ms...500ms en cas de surcharge: 500 ms |
Limitation en courant | typique 1,2 x IN |
Indication de l'état de commutation | 1 DEL vert/orange/rouge: état de commutation/défaut |
Température ambiante | |
Raccords | Raccords à languette 6,3 mm |
Montage | plug-in type, |
Homologations | UL 1077 DC 24 V, UL 2367 DC 24 V, UL1310 (NEC Class 2) DC 24 V, VDE IEC/EN 60934 DC 24 V |
Applications
- Automation
- Industries chimiques, pétrolifères & gazifières
- Power Engineering DC 24 V
- Production des véhicules automobiles
Téléchargements
Fiches techniques et explications
- Fiche technique 854.3 Ko
- ESS30_S_dxf.zip 299.3 Ko
- ESS30_S_igs.zip 2.3 Mo
- ESS30_S_jpg.zip 342.2 Ko
- ESS30_S_pdf.zip 113.8 Ko
- ESS30_S_stp.zip 2.3 Mo
- Electronic circuit breaker ESS30-S 695.4 Ko
- B_ESS-Portfolio_en.pdf 3.3 Mo
